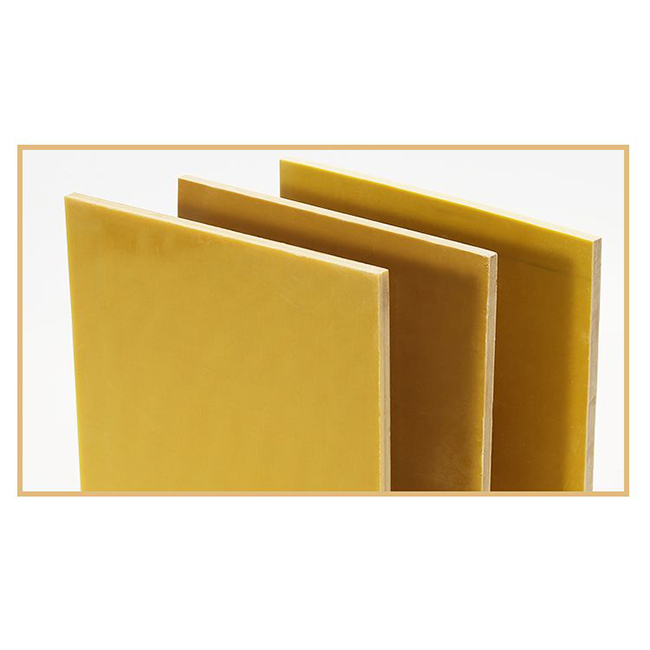

3240 insulating gilashin epoxy laminate

A takaice bayanin:

Hukumar epoxy na wannan samfurin: An ɗaure zane na Fiber Fiber tare da guduro epoxy kuma an yi shi ta hanyar dumama da latsawa. Misalin shine 3240. Tana da kaddarorin kayan aikin yau da kullun a zazzabi na matsakaici da kaddarorin lantarki a babban zazzabi. Ya dace da High - Abubuwan ƙirar ƙasƙanci na kayan aiki, kayan aikin lantarki da kayan lantarki, tare da manyan kaddarorin kayan aiki, tare da babban kayan masarufi da juriya da ruwa da juriya. Heap surface aji e (125 digiri).

Kauri na yau da kullun: 0.5 ~ 100mm
Girman yau da kullun: 1020 × 2040mm
Yana da zafi kuma ya lalace a babban zafin jiki na 180 ℃, gabaɗaya ba mai zafi tare da sauran karafa, wanda zai iya haifar da nakasar ƙarfe

Aika imel zuwa gare mu

Cikakken Bayani

Tags samfurin

Abubuwan Aikace-aikace

1. Daban-daban siffofin.
2. Mai sauƙin warkarwa.

3. Mai ƙarfi m.
4. Daban-daban siffofin.

Bayanan samfurin

A'a.	Kaddarorin	Guda ɗaya	Ƙimar ƙimar
1	Karfin karfi mai nauyi da faduwas A: A ƙarƙashinna al'adayanayi E - 1/150: A karkashin 150±5℃	MPA	≥ 340
2	Notch tasirin aiki daidaici zuwa lamation(mashuda)	KJ / M2	≥ 33
3	Resulation juriya bayan nutsewa a ruwa (D - 24/23)	Ω	≥5.0x108
4	Ikon Mulki zuwa Lamination ion(a cikin mai 90 ± 2 ℃)1.0mm cikin kauri	MV / m	≥ 14.2
5	Rashin wutar lantarki paerelel zuwaLamination ion (a cikin mai 90 ± 2 ℃)	kV	≥ 35
6	Izinin (48 - 62Hz)	-	≤ 5.5
7	Izinin (1MHz)	-	≤ 5.5
8	Dissipation factor (48 - 62hz)		≤0.04
9	Masana'antu (1mhz)		≤0.04
10	Sha ruwaD24 / 23, 1.6mm cikin kauri	mg	≤ 19
11	Yawa	g / cm3	1.70 - 1.90
12	Harshen wuta	Rarraba	-
13	Launi		Na halitta
